-Saxes & Viking Styles-
The 'Sax,' 'Seax,' or 'Scramaseax,' are single-edged blades
that existed roughly from the Migration Era through the Viking Age.
These are not meant to be reproductions, but contemporary extensions of the tradition.
Here are some in-progress shots of a Migration Era sword-length sax.

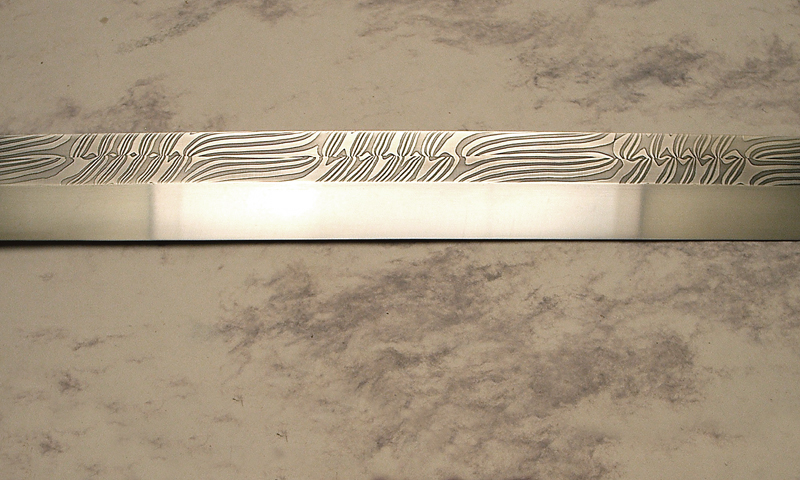

-Click here to see a close-up of the blade-

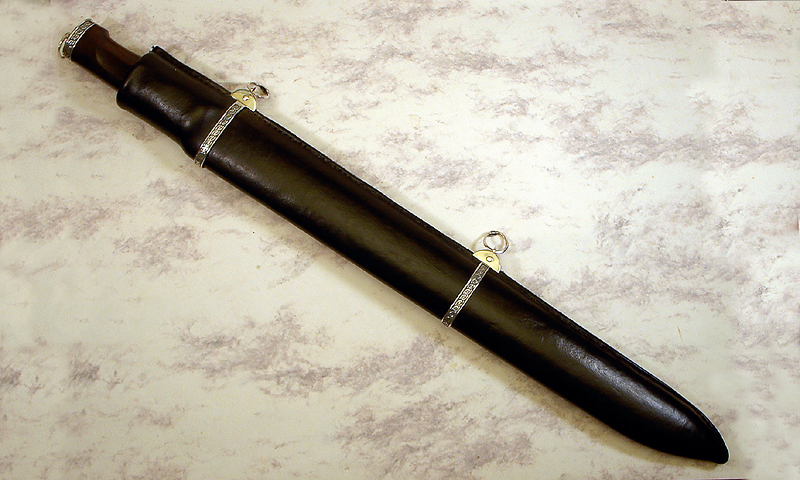

-Click here to see the Seax sheathed-

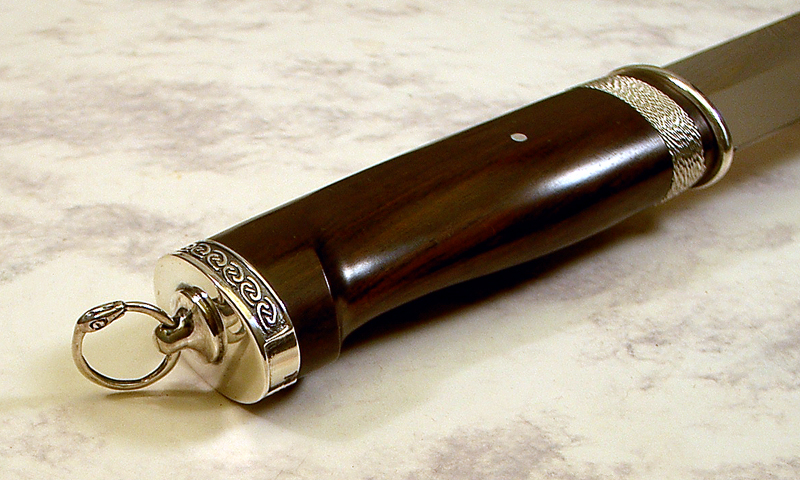

-Click here to see the handle-

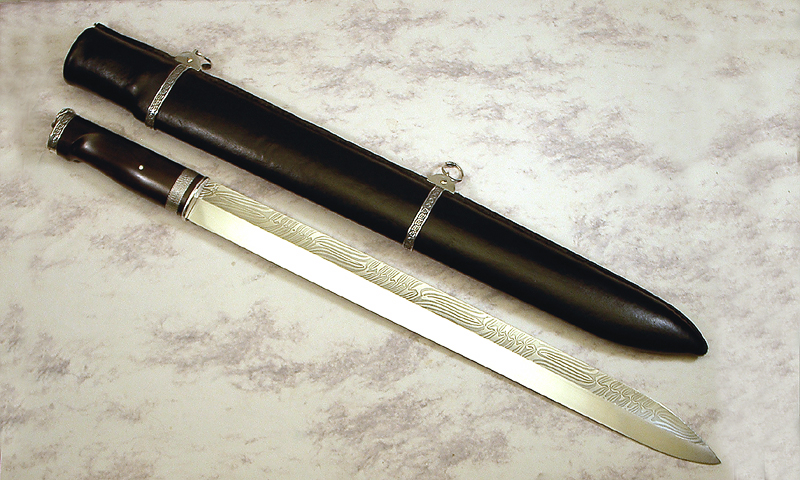

'Damascus Seax'
Blade 22" ; Handle 6"
The blade is an interrupted twist & split 4-core spine in 1070/15N20 with
a laminated L6 edge. The spine is hollow ground. The handle
is Blackwood and the fittings are all Sterling silver. The wire wrap at the
bolster area serves to stop the fingers and is found on many of the blades from
this period. It is my belief that the wrap also served to hold the tang in
by tension; there is a slight cut in the handle which clamps down on
the tang when the wire is tightly wrapped in place. The pommel holds a
ring in the shape of the Midgard Serpent, biting his own tail. The
sheath is vegetable tanned leather over wood.
|
|

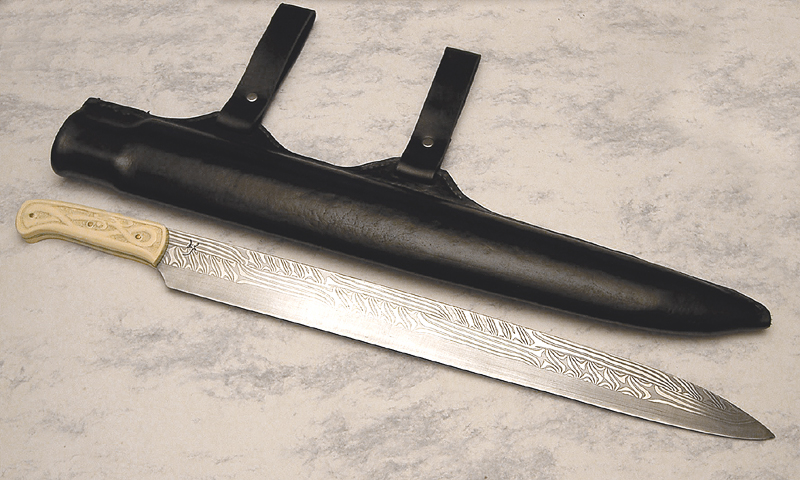

'Ivory Seax'
Contact Mastersmith's Gallery, in NYC. Blade 18" ; Handle 5" Two bar stacked interrupted / offset twist in 15N20 and 1070. The handle is carved fossil ivory and the sheath is leather over wood. A deadly sharp chopper... quick in the hand! |
-Click here to see a close-up of the blade-
'Interrupted Twist Seax'
Blade 22" ; Handle 5"
See the making of this piece Here.
The handle is
fossil walrus ivory with Sterling fittings and a Finnish Spectralite
set in the pommel. A truly historically accurate piece would have had
an edge with either a solid appearance or a very high layer count in a
straight laminate. Taking advantage of modern materials I thought it
would be very interesting visually to have the edge maintain the same
layer count as the straight sections, creating horizontal lines all the
way across the blade.

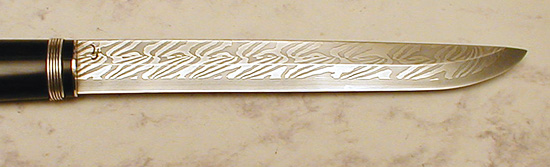

-Click here to see a close-up of the blade-
-Click here to see the knife sheathed-

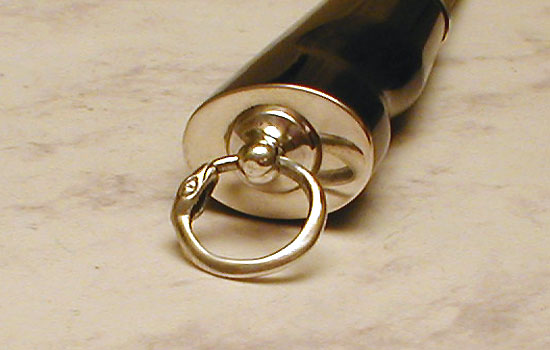

-Click here to see the pommel & ring-
-Click here to see the inspiration for the piece-

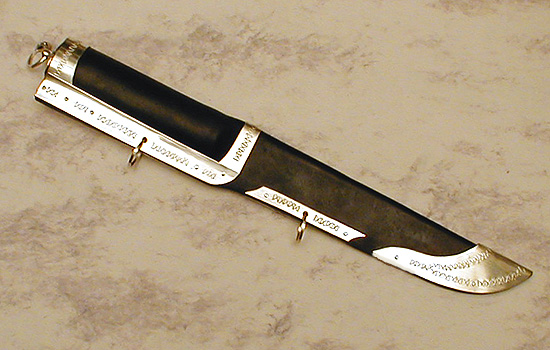

'Damascus Seax with Gotland Sheath'
Blade 8 1/2" ; Handle 5"
This Seax is based on finds from Gotland, an island off the
coast of Sweden. The blade is a 5 billet composite in
traditional Seax style, the spine is made of four billets of 10 layers
welded together in 1080 & 15N20. The edge is 1080 folded onto itself
as if it was refined in the traditonal manner; you can see the layers
running lengthwise. The handle is Blackwood and the
fittings are all Sterling silver. The pommel holds a
ring in the shape of the Midgard Serpent, biting his own tail.
'Damascus Seax'
Blade 9.5" ; Handle 4.5"
This Seax is based on some
early examples found in a bog in Vimose, Sweden. It is a composite
construction made with three bars: two opposing twists and a straight
laminate edge. The handle is mammoth ivory about 15,000 years old with
Sterling silver pins. The sheath is birdseye maple with sterling
silver harnesses. The rings are in the form of an Ourobos, or a snake
eating its own tail. The sheath is lined with vegetable tanned
leather.
